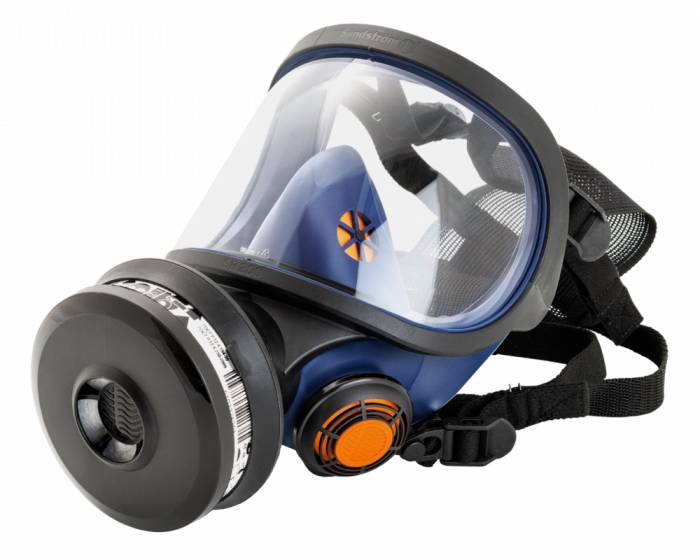

Sundström SR 200 Glass Full Face Mask


The SR 200 full face mask is made of silicone and is produced in one size that will fit most face sizes. The mask is equipped with three inhalation valves and two exhalation valves, and the breathing resistance is therefore very low. The exhalation valve covers with baffles effectively protect the valves and membranes against dust and paint mist. The design and location of the exhalation valves improve the scope available for communicating. The material and pigments of the mask body are FDA- and BGA approved for exposure to provisions, which minimizes the risk of contact allergies. The easily adjustable elastic head harness of the mask is secured to the visor frame and to the exhalation valves which, together with a large crown plate, contributes towards a comfortable and secure fit. The spherical visor of the mask is made of laminated glass, which provides a large field of vision. The mask can be used either as a filtering device in combination with filters from the Sundström range of filters, or as breathing apparatus with a continuous air flow together with the SR 307 compressed air attachment. The SR 200 can also be used as head top together with the Sundström fan unit SR 500 or SR 700. Holder for pre-filter is included. The SR 200 full face masks together with the SR 500 EX fan are approved for use in a potentially explosive atmosphere. Best stored in box SR 344 alternatively storage case SR 339-1 or SR 339-2

Technical Specifications

More Information H01-1312
Model description SR 200 Glass
Shelf life (years) 10
Country of manufacture Sweden
Operating temp. -10 – +55 °C, < 90 % RH
Storage temp. -20 – +40 °C, < 90 % RH
Assign. protection factor 20 (GasX), 40 (P3)
Nom. protection factor 1000 (GasX P3), 1000 (P3), 2000 (GasX)
Classification 2 II 2 D Ex ib IIIC T195° Db, II G Ex ib IIB T3 Gb
Color Blue
Material Silicone
Approval EN 136:1998, EN 148-1:1999
Directive 1 (EU) 2016/425 PPE
Directive 2 ATEX 2014/34/EU
