Sundström SR 77-3 ABEK1-Co-P3 M/L Stat


Escape hood with filter for evacuation in case of fire or/and chemical emission accident.

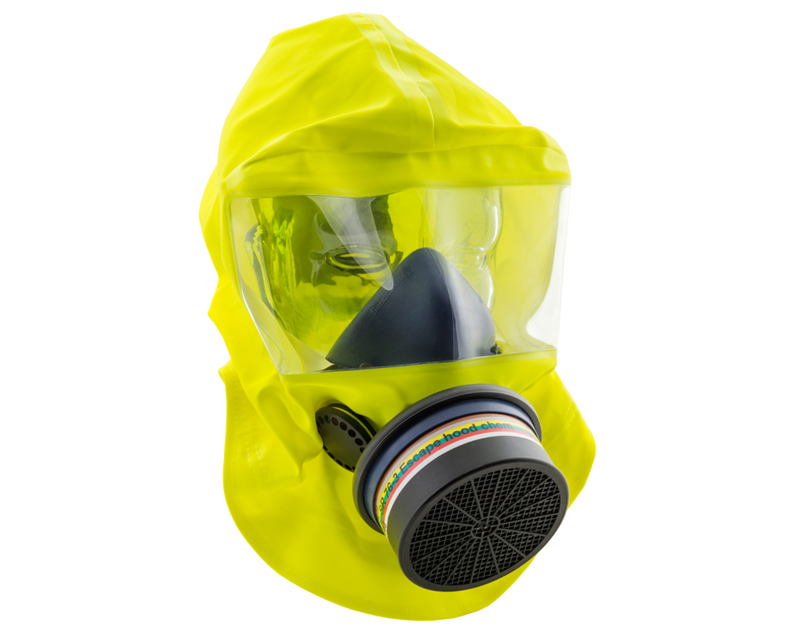

The SR 77-3 Escape Hood is a filtering respiratory protective device combined with a hood for self rescue in the event of a fire or a chemical emission accident. The hood is based on a Sundström silicone half mask, which is mounted in a hood made of flame-resistant material. The hoods are vacuum-packed in aluminum bags. The hood can be put on quickly and simply without prior adjustment. The hood is available in two sizes and fits most adults and teenagers. The hood is equipped with gas filter SR 331-2, ABEK1-CO and particle filter SR 510, P3 , and provides shorttime protection against carbon monoxide and other toxic gases and particles that may be emitted in a fire or in a chemical emission accident. A1, organic gases and vapours, such as solvents, with boiling points above 65 °C. B1, inorganic gases and vapours, such as chlorine, hydrogen sulphide and hydrogen cyanide. E1, acidic gases and vapours such as sulphur dioxide and hydrogen fluoride. K1, ammonia and certain amines, such as ethylene diamine.

Technical Specifications
More Information H15-3412
Color Yellow
Shelf life (years) 10
Country of manufacture Sweden
Package dimensions (mm) 160x150x210mm
Operating temp. -20 – +55 °C, < 90 % RH
Storage temp. -20 – +55 °C, < 90 % RH
Nom. protection factor 50
Approval EN 403:2004, EN 14387:2004 + A1:2008

Model description

Directive 1

SR 77-3

(EU) 2016/425 PPE

Downloadable Files

 SR 77-3 ABEK1-CO-P3 M/L Stat - Sundström Safety (
